快排套件 PANIGALE V4 R / STREETFIGHTER V2

適用車型：DUCATI PANIGALE V4 R 2019-2024
DUCATI STREETFIGHTER V2 2022-2024

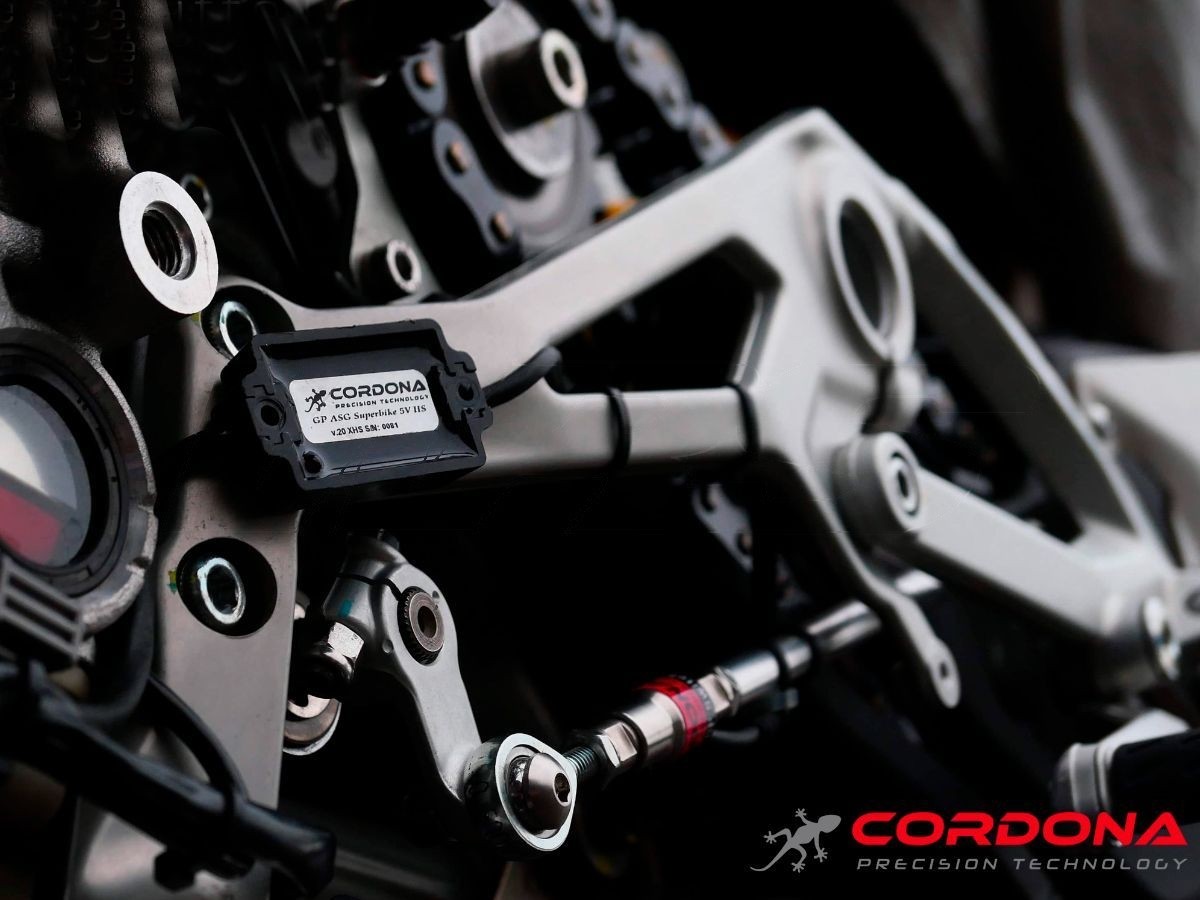

CORDONA QUICKSHIFTER KIT + BLIPPER
Complete with specific wiring for your motorcycle model.
Analogue Strain Gauge Load Cell for ECU’s with upshift and auto blipper for downshift function. Used for advanced ECU’s like Magneti-Marelli, Motec, Mectronik, MotoGP ECUs as well as for OEM, Kit ECU's and flashed ECU’s for street bikes with an analogue 0-5V input.
The GP ASG Superbike shifter greatly improves the gear change performance and reliability compared to OEM shifters, that can often lack feel and gives longer shift times. Compared to a stock OEM shifter you will notice a far superior distinct and smoother action, allowing faster gear change performance like top GP and WSBK systems.
With this performance upgrade the bike will be more stable, use less traction control and upset chassis less during gear changes, especially when shifting mid corner at lean angle.
Il GP ASG Superbike 420std è un ricambio OEM per Aprilia RSV4, Tuono V4, DQS, ricambio per Ducati Monster S, Multistrada 1260, Panigale V4, V4S, V4R, 1199R/1299, Supersport S. Consulta l'elenco delle moto per l'anno modello specifico.
**Per moto con interfaccia 0-5V e solo quickshifter (cambio marcia superiore), come molte Mv Agusta, la GP ASG Superbike funziona bene solo per il cambio marcia superiore. Se la centralina verrà aggiornata (flashata) con blip, la GP ASG Superbike supporta anche il cambio marcia inferiore senza problemi.
>>La versione 420Speciale è montata al 100% plug&play con uniball e lunghezze di stelo specifiche per moto.<<

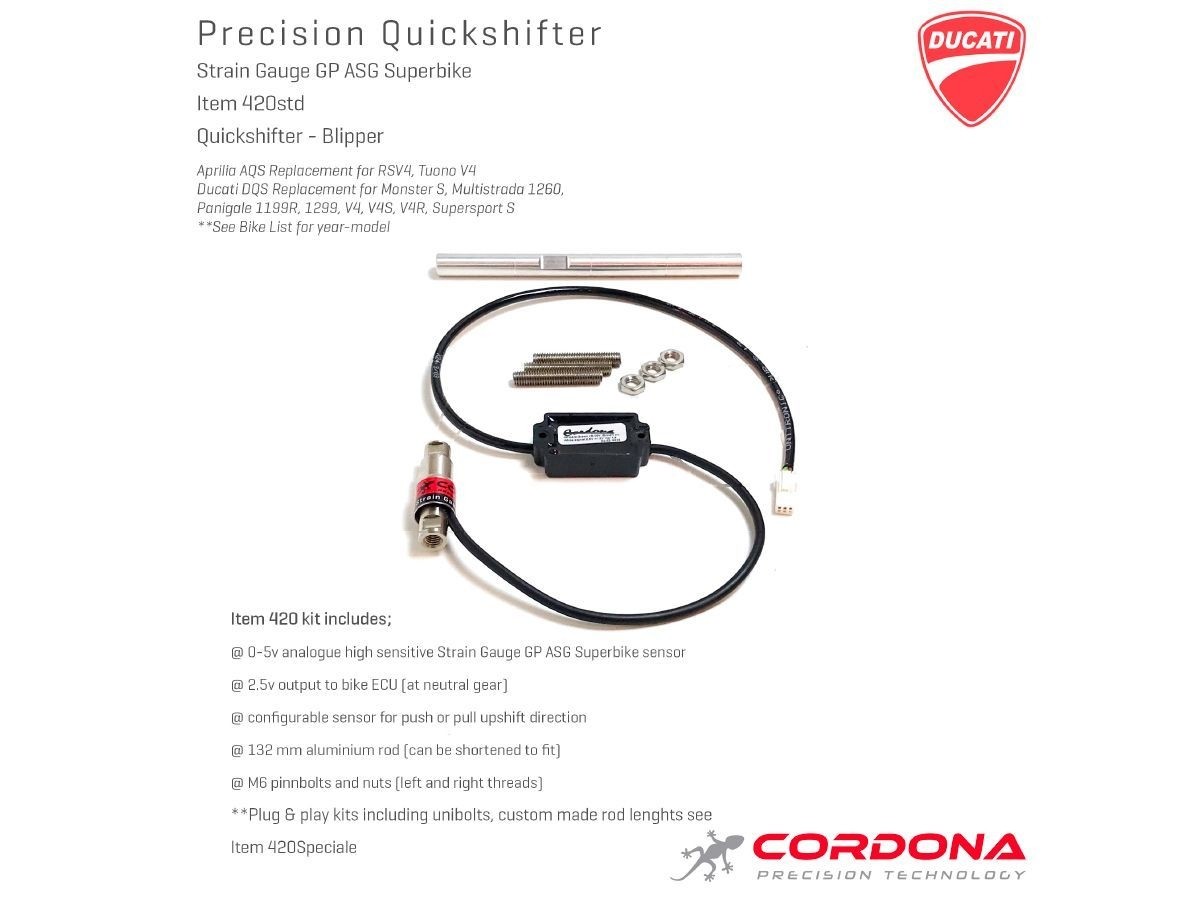

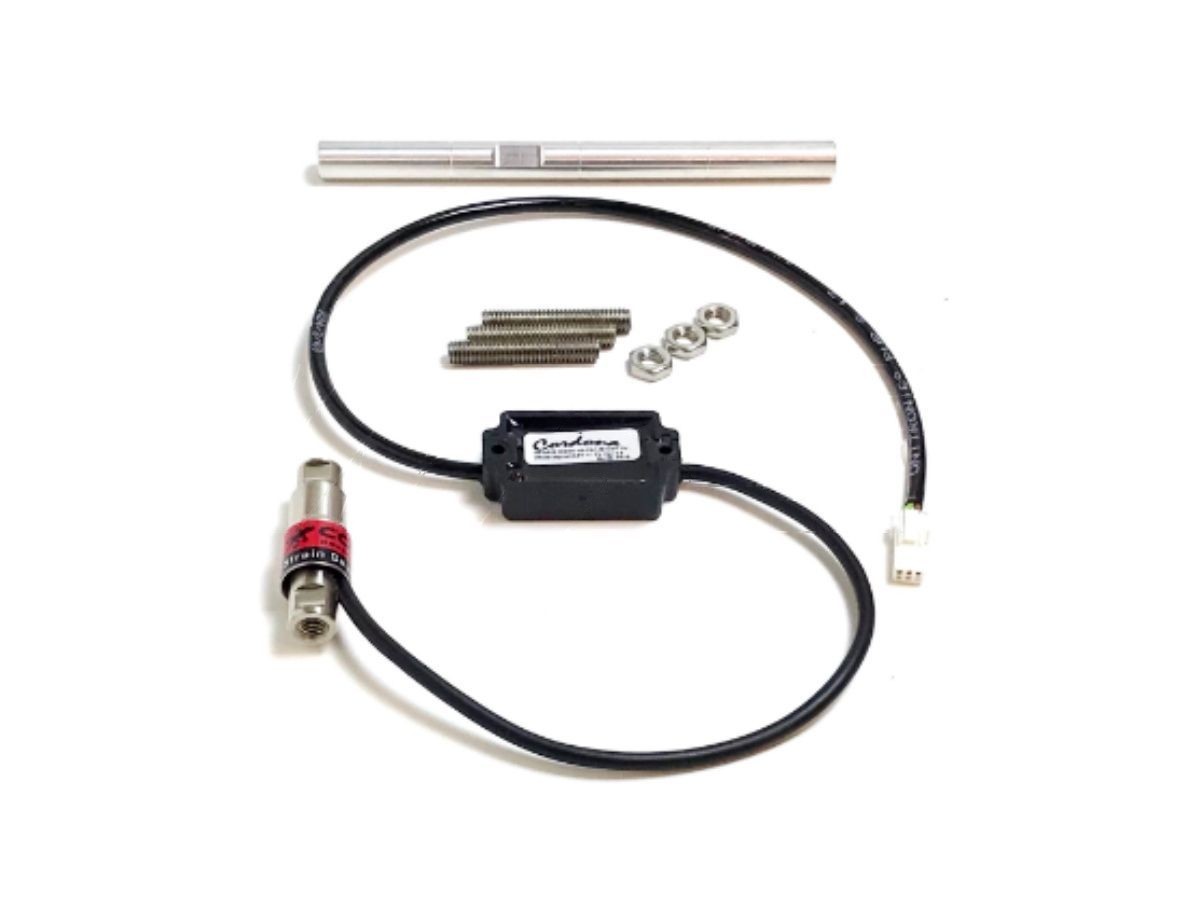

This kit included:
420EVO-110
• GP ASG 420Evo Quickshifter-Blipper
• Complete gear linkage, 110mm aluminum shaft and 60cm cable lenght

Main features:
- Superbike GP ASG Strain Gauge Highly sensitive analogue load cell 0-5V
- Strain gauge technology, no moving parts in the sensor
- Dual linear analogue output to the bike ECU, 2.5 and 1.25V (idle), range 300N to 0.5V/4.5V
- EVO version has an output signal with a "speed dependent hysteresis" character
- Configurable push or pull direction
- 5-15V DC power supply
- 20MHz processor with adaptive calibration for temperature and vibration
- Maximum sensor temperature 125°C (150°C for short periods), electronic module 85°C
- Temperature drift <0.04% within the operating range -10°C to 125°C.
- Sensor and module completely sealed and protected from the elements (IP68)
- High precision CNC machined stainless steel housing
- Dimensions; 45 mm long, 14 mm diameter
- total weight sensor-electronics 55 g, complete connection incl. rod-uniball 120 g
- 'magic' threads M6, left and right threads at both ends of the sensor
- CE mark (EMC radiated)
N.B. This picture is only indicative
FOR MORE INFORMATION PLEASE CONTACT US
